Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional
Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Fermentation Unit

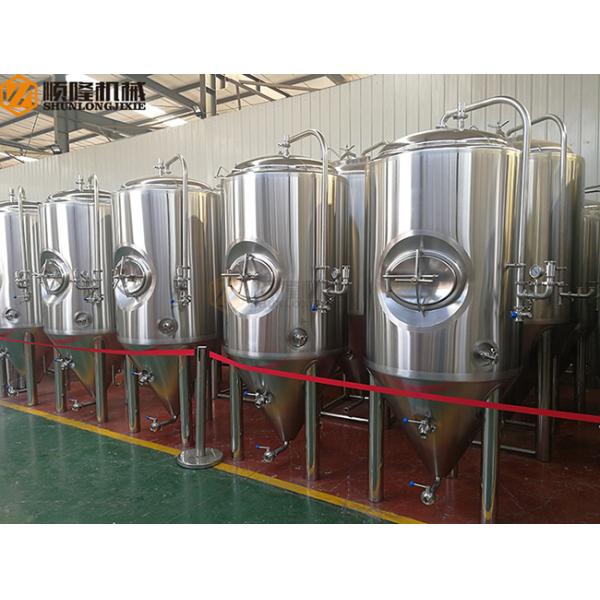

Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Other Facilities
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery Costs and output
| production capacity | 100L | 200L | 300L | 500L | 1000L | 2000L |
| Floor space | ≥15m² | ≥25m² | ≥35m² | ≥50m² | ≥80m² | ≥120m² |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
| Consumption of water(Max) | 0.2m³/h | 0.4m³/h | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.0m³/h |
| Total water consumption per day | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.5m³/h | 5.0m³/h | 10m³/h |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Steam | | 0.017t/hr | 0.017t/hr | 0.05t/hr | 0.10t/hr | 0.20t/hr |
Our Service
Before-Sales
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.
2. Exist Brewery Expansion
Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.
3. Effective business communication
Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.
4. Brewing consultant
We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.
After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more.
